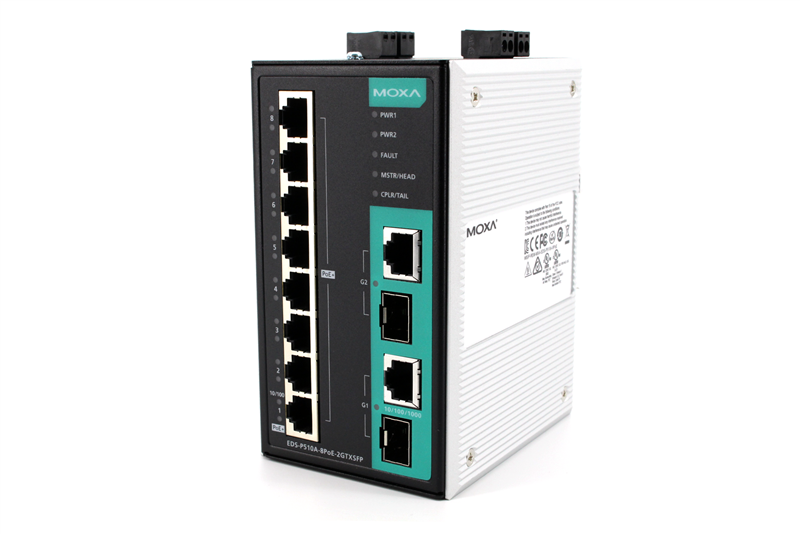

Moxa Managed Ethernet PoE Switch with 8 PoE+ ports, 2 combo gigabit Ethernet ports, -40 to 75°C
Part Number: EDS-P510A-8POE-2GTXSFP-T
Features and Benefits
8 built-in PoE+ ports compliant with IEEE 802.3af/at
Up to 36 W output per PoE+ port
3 kV LAN surge protection for extreme outdoor environments
PoE diagnostics for powered-device mode analysis
2 Gigabit combo ports for high-bandwidth and long-distance communication
Operates with 240 watts full PoE+ loading at -40 to 75°C
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery
Ethernet Interface
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
2
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
PoE Ports (10/100BaseT(X), RJ45 connector)
8
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
Filter
GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial Protocols
EtherNet/IP, Modbus TCP
Management
Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
HTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH
Time Management
NTP Server/Client, SNTP
Switch Properties
IGMP Groups
1024
MAC Table Size
8 K
Max. No. of VLANs
64
Packet Buffer Size
1 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
