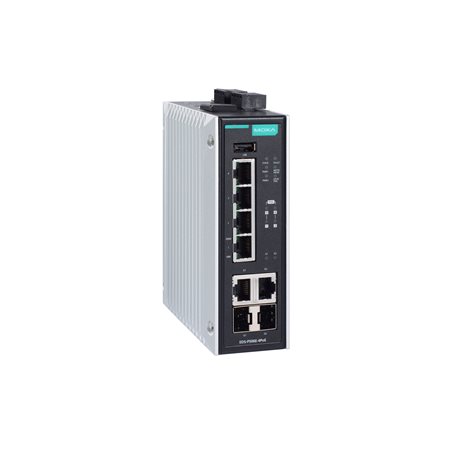

Moxa Managed PoE Ethernet switch with 4 PoE 10/100BaseT(X) ports, and 2 100BaseFX multi mode port with SC connector, 0 to 60°C
Part Number: EDS-P506A-4POE-MM-SC
Features and Benefits
Built-in 4 PoE+ ports support up to 60 W output per port
Wide-range 12/24/48 VDC power inputs for flexible deployment
Smart PoE functions for remote power device diagnosis and failure recovery
2 Gigabit combo ports for high-bandwidth communication
Supports MXstudio for easy, visualized industrial network management
Ethernet Interface
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
2
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
PoE Ports (10/100BaseT(X), RJ45 connector)
4
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
Filter
802.1Q VLAN, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
Industrial Protocols
EtherNet/IP, Modbus TCP, PROFINET
Management
Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
Broadcast storm protection, HTTPS/SSL, MAC ACL, TACACS+, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH
Time Management
IEEE 1588v2 PTP (software-based), NTP Server/Client, SNTP
Switch Properties
IGMP Groups
256
Jumbo Frame Size
9.6 KB
MAC Table Size
8 K
Packet Buffer Size
12 Mbits
Priority Queues
4
Max. No. of VLANs
64
VLAN ID Range
VID 1 to 4094
