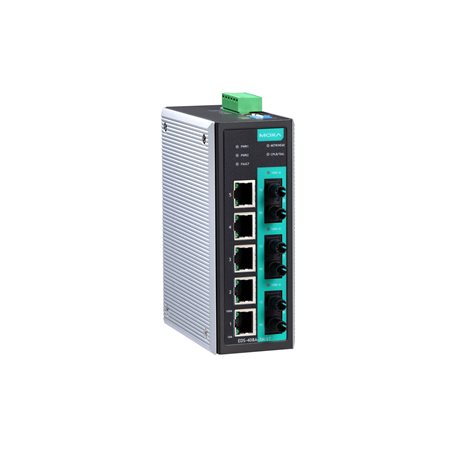

Moxa Entry-level Managed Industrial Ethernet Switch
Part Number: EDS-408A-3S-SC-48
*Note: This Item is Non-Returnable to Moxa
Features and Benefits
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and
RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console,
Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
5
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (single-mode SC connector)
3
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
Optical Fiber
Switch Properties
IGMP Groups
256
MAC Table Size
8 K
Max. No. of VLANs
64
Packet Buffer Size
1 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
