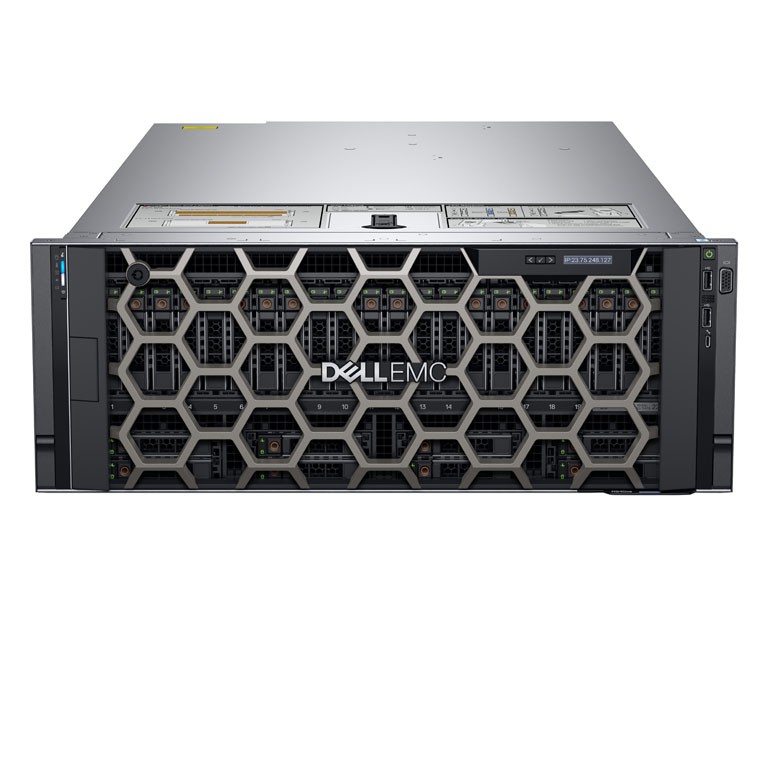

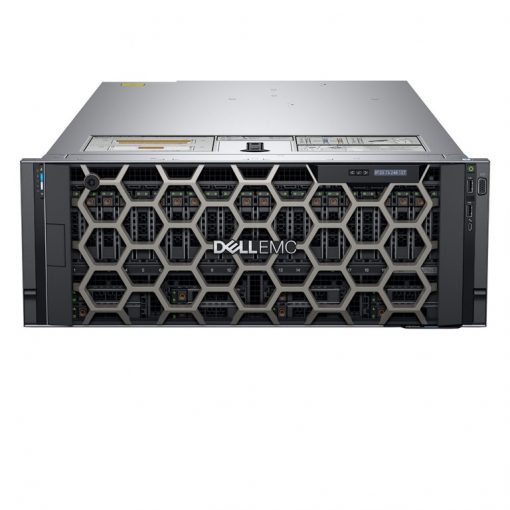

Dell PowerEdge R940xa Rack Server
Part Number: R940xa
Extreme acceleration for business insights
Processor
Up to four 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators
Up to four doublewidth GPUs
Up to four double-width or 8 single-width FPGAs
Memory
DIMM Speed
Up to 2933MT/s
Memory Type
RDIMM
LRDIMM
NVDIMM
DCPMM (Intel® Optane™ DC persistent memory)
Memory Module Slots
48 DDR4 DIMM slots (12 NVDIMM or 24 DCPMM slots only)
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 3TB
LRDIMM 6TB
NVDIMM 384GB
DCPMM 12.28TB (15.36TB with LRDIMM)
Storage
Front Bays
Up to 8 2.5” SAS SATA (HDD/SSD) max 61.44TB
Up to 24 x 2.5” SAS SATA (HDD/SSD) max 184.32TB
Up to 32 x 2.5″ SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
Storage Controllers
Internal Controllers
PERC H730P, H740P, H330, HBA330
External Controllers
H840, 12 Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480GB
