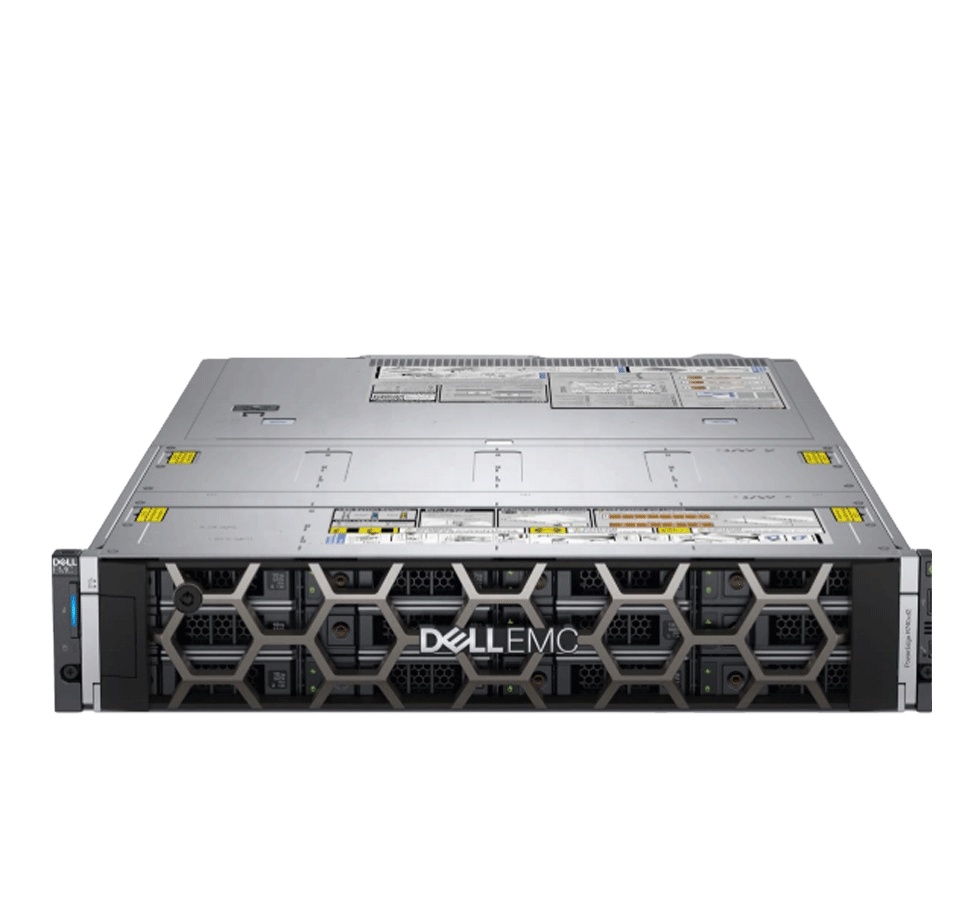

Dell PowerEdge R740xd2 Rack Server
Part Number: R740xd2
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 22 cores per processor
Operating System
Canonical® Ubuntu® LTS
Citrix® Hypervisor
Microsoft® Windows Server® LTSC with Hyper-V
Oracle® Linux
Red Hat® Enterprise Linux
Memory
DIMM Speed
Up to 2666MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR4 RDIMM slots
Supports registered ECC DDR4 DIMMs only
Maximum RAM
RDIMM 1TB
Storage
Front Bays
Up to 24 x 3.5” SAS/ SATA (HDD) max 384TB
Up to 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS/SATA (SSD) max 317.44TBi
Rear Bays
Up to 2 x 3.5” SAS/ SATA (HDD) max 32TB
Up to 2 x 2.5” SAS/SATA (SSD) drives max 15.36TBi
Storage Controllers
Internal Controllers
PERC H730P, H330, HBA330
External Controllers
12 Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB or 480GB
Internal Dual SD Module
