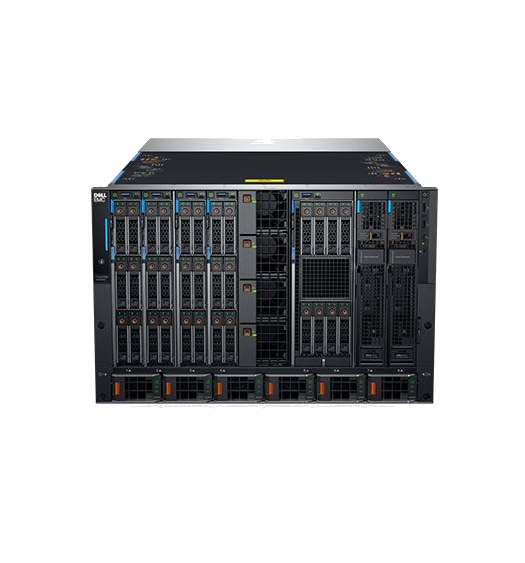

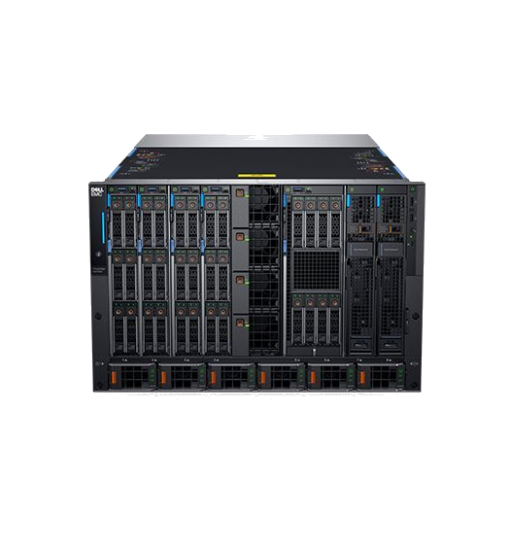

Dell PowerEdge MX7000 Modular Chassis
Part Number: MX7000
Liberate IT resources to achieve optimal utilization, productivity and efficiency
As dynamic and innovative as your business, PowerEdge MX kinetic infrastructure bridges traditional and software-defined data centers with unequal flexibility and agility. At the foundation, PowerEdge MX7000 chassis hosts disaggregated blocks of server and storage to create consumable resources on-demand. Shared power, cooling, networking, I/O and in-chassis management provides outstanding efficiencies.
- 7U modular enclosure with eight slots holds 2S single or four 4S double-width compute sleds and 12Gbs single-width storage sleds
- 25Gb Ethernet, 12Gb SAS and 32Gb Fibre Channel I/O options
- Three I/O networking fabrics, two general purpose and one storage specific, each with redundant modules
- Multi-chassis networking up to 10 chassis
- Single management point for compute, storage and networking
- High-speed technology connections, now and into the future, with no midplane upgrade
- At least three server processor microarchitecture generation support assurance
Security
TPM 1.2/2.0 (optional)
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown
System Erase
Power Supplies
Up to 6 x 3000W; PSU and grid redundancy support
Chassis
Form Factor:
7U modular enclosure with 8 full width slots for combination of compute and storage sleds
GPU Core Expansion Module:
The optional Amulet Hotkey CoreModule delivers 16x NVIDIA T4 GPUs in a fully populated MX7000 Modular Chassis. See the Amulet Hotkey website for more information on the module.
Dimensions & Weight
307.4mm width (x)
482mm height (y)
811.6mm depth (z)
105lbs empty chassis weight
400lbs maximum weight
