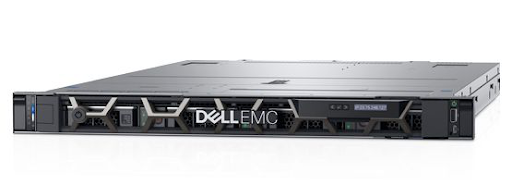

Dell EMC PowerEdge R6525 Rack Server
Part Number: R6525
Ideal for a dense virtualization environment
The Dell EMC PowerEdge R6525 is a dual-socket 1U server that delivers performance and innovation to handle workloads like HPC, VDI and virtualization.
Processor
Up to two 2nd or 3rd Generation AMD EPYCTMProcessors with up to 64 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators
Up to 2 single-wide GPUs
Memory
DIMM Speed
Up to 3200MT/s
Memory Type
RDIMM
LRDIMM
Memory Module Slots
32 DDR4 RDIMM slots
Maximum RAM
RDIMM 2 TB
LRDIMM 4 TB
Storage
Front Bays
Up to 4 x 3.5” hot plug SAS/SATA (HDD)
Up to 8 x 2.5” hot plug SAS/SATA (HDD)
Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe
Storage Controllers
Internal Controllers
PERC HBA345, H345, H745
External Controllers (RAID)
H840, 12Gbps SAS HBA
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs
Internal Dual SD Module
