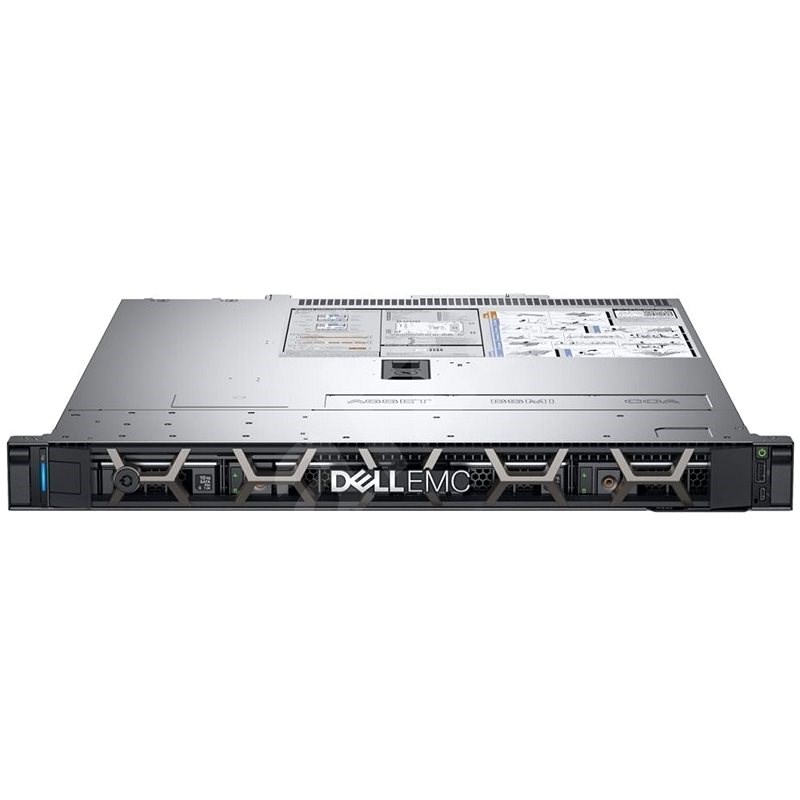

Dell EMC PowerEdge R340 Rack Server
Part Number: R340
Accelerate Business Growth
Processor
Up to one Intel® Xeon® E-2200 product family processor with up to 8 cores per processor
Up to one Intel® Pentium® G5420 processor up to 2 cores per processor
Up to one Intel® Core i3® 9100 processor up to 4 cores per processor
Up to one Intel® Celeron® G4930 processor up to 2 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor
Microsoft® Windows Server® LTSC with Hyper-V (2016 and 2019)
Oracle® Linux
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memory
DIMM Speed
Up to 2666 MT/s
Memory Type
UDIMM
Memory Module Slots
4 UDIMM slots
Maximum RAM
UDIMM 64GB
Storage
Front Bays
Up to 8 x 2.5” hot-plug SAS/SATA (SSD)
Up to 4 x 3.5” hot-plug SAS/SATA (SSD)
Storage Controllers
Internal Controllers
PERC H330, H730p, HBA330
External Controllers
12Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
2 x M.2 240GB (RAID 1 or No RAID)
1 x M.2 240GB (No RAID only)
Internal Dual SD Module (IDSDM)i:
2x microSD (16GB, 32GB or 64GB)
1x microSD (16GB, 32GB or 64GB)
