CRYSTAL GROUP RS1004L21X2 Rugged 1U Twin Server

Part no: RS1004L21X2

CRYSTAL GROUP RS1004L21X2 Rugged 1U Twin Server

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

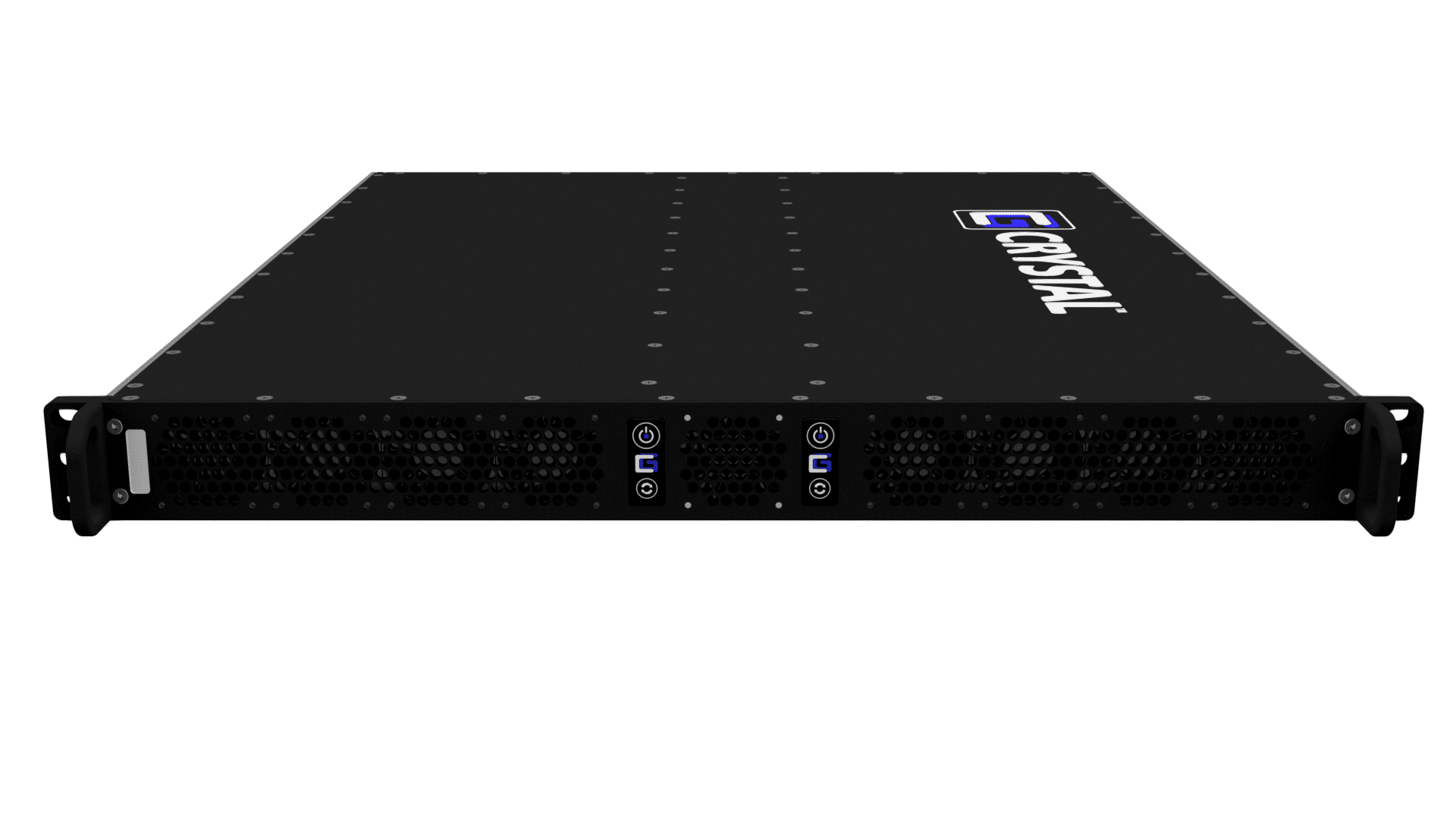

CRYSTAL GROUP RS1004L21X2 Rugged 1U Twin Server

Part Number: RS1004L21X2

The Rugged 1U Twin Server provides twice the computing performance that in a 1U Rugged Server.  Therefore, making it a successful product for combat, sonar, ISR, electronic warfare applications in unpredictable environments.

The Crystal Group RS1004L21X2 is a rugged 1U Twin Server.  Firstly, the design consolidates system availability with superior cooling using 9 fans.  As well as a shock and vibration resistance in a smaller food print that fits easily into standard rack slots.

RS1004L21X2 Rugged 1U Twin Server

  • Rugged 1U, 21” deep rack mounted dual node, rear I/O server
  • Aluminium construction
  • Weighing 12.7 kgs.
  • 1500W Shared power supply operates from 110/220V 50/60Hz AC
  • SWaP capability with two dual socket motherboards per chassis
  • 2nd Gen Intel Xeon Scalable processors up to 110W each
  • 4 low profile PCIe x16 slots, plus 2 x SIOM modules with up to 8 x ports of network connectivity per chassis
  • 4 x USB 3.0 and two VGA
  • 4.45cm H x 44.45cm W x 54.34cm D

Click to download the product datasheet
