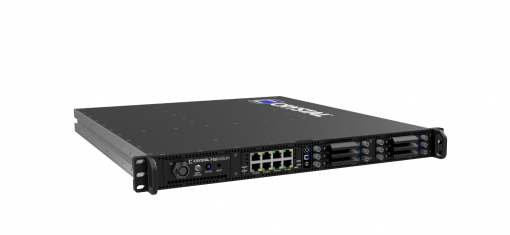

CRYSTAL GROUP FORCE™ RS1104 RUGGED ISR ENCODER
Part Number: RS1104
A new standard for ISR. Crystal Group’s rugged ISR encoder module uses the Haivision Makito X1 encoder to deliver real-time streaming of MISB-compliant full motion video capabilities required for demanding intelligence, surveillance and reconnaissance (ISR) applications.
The fully integrated system combines a Makito X1, eight-port switch, six 2.5” SSD storage drives and dual Intel® Xeon® scalable processors into our RS1104 1U server to optimize performance and SWaP. At just under 22 pounds, this ultra-compact rugged server tackles the workload of three separate 1U units, including two simultaneous compression functions via two separate encode engines. This provides a high-quality video stream for machine learning applications running on the RS1104 and a low-bitrate video stream to reach remote users over constrained network links. The system also delivers efficient, high performance mission computing, storage, layer 2+ switching, and encoding capability.
With our Crystal Group FORCE™ server as the foundation, the RS1104 is engineered to meet strict MIL standards, accelerate compute-intensive workloads, and provide advanced thermal management. This ensures seamless operation in the most demanding, unpredictable situations.
CRYSTAL GROUP FORCE™ RS1104 RUGGED ISR ENCODER
- Network adaptive H.265/HEVC encoding
- Interoperable video and metadata
- Built-in management interface
- Ultra-low latency
- Intel® Xeon® Scalable CPU
- Supports 802.1Q VLAN switch with 8K MACs, 4K VLAN and link aggregation (IEEE 802.3ad)
- 8 or 16 external switch ports
- Rugged, lightweight 17-22 lbs. chassis
- Rack mounted 19” depth
- Easily mounted – Fixed mount or Jonathan® rails
Optional features
- Mil-CIRC power connector
- EMI filter
- Humidity protection
- Dust filter
- Data-at-rest
- Sanitization
- Tamper evident seals
- Tamper proof coatings
- Chassis intrusion indicator
- USB 3.0 headers
