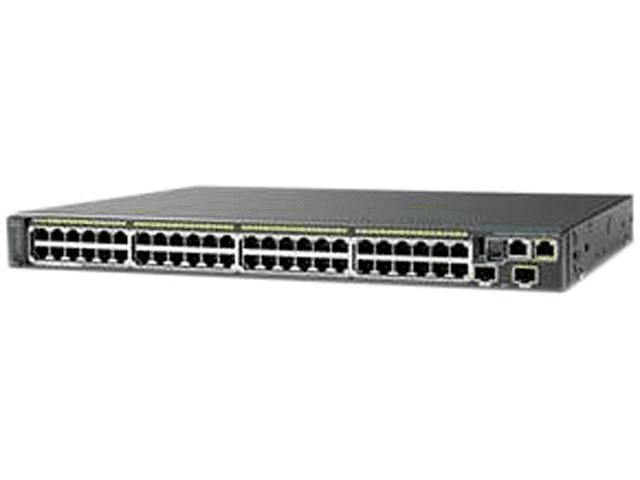

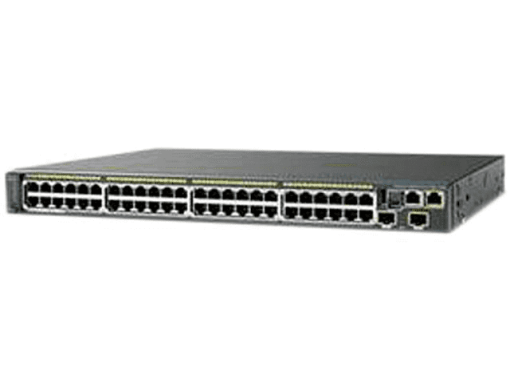

Cisco WS-C2960S-48LPS-L Catalyst 2960S Switch
The Cisco Catalyst 2960S Series Switches are the leading layer 2 edge, providing improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience. The Cisco Catalyst 2960S Series Switches include Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity.
Brand
Cisco
Feature
PoE, Gigabit Ethernet, VLAN
Type
Switches
Switch type
Managed
General
Device Type
Switch – 48 ports – Managed – stackable
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Switching capacity: 176 Gbps Forwarding performance: 88 Gbps
Capacity
Virtual interfaces (VLANs): 255
MAC Address Table Size
8K entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
SNMP 1, SNMP 2, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
Layer 2 switching, dynamic IP address assignment, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, Cisco Fast EtherChannel, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Dynamic ARP Inspection (DAI), PoE+, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Cisco FlexStack
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM
128 MB
Flash Memory
64 MB
Status Indicators
Port status, port transmission speed, port duplex mode, power, system, link/activity
Expansion / Connectivity
Interfaces
48 x 100Base-TX 10Base-T/100Base-TX – RJ-45 – RJ-45 PoE+ – 30 W 1 x USB Type A 4 x SFP (mini-GBIC) – SFP uplink
Expansion Slots
1 (total) / 1 (free) x Stacking Module
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit
Optional
MTBF
318,000 hours
Compliant Standards
TUV GS, CISPR 24, NOM, EN55024, CISPR 22, CB, MIC, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CSA C22.2 No. 60950-1
Software / System Requirements
Software Included
Cisco IOS LAN Base
Dimensions & Weight
Width
44.5 cm
Depth
38.6 cm
Height
4.5 cm
Weight
5.7 kg
Manufacturer Warranty
Service & Support
Limited warranty – replacement – lifetime – response time: next business day Limited warranty – power supply and fans – 5 years New releases update
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 – 95% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 – 95% (non-condensing)
