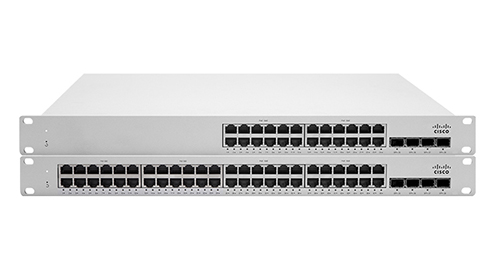

Cisco Meraki MS225 Series Switches
Series Number: MS225
The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements. All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line.
Key Configurations
- 24 or 48 10/100/1000BASE-T Ethernet RJ45
- PoE Supported up to 740 W on selected models
- 4 x SFP+ 10GbE uplink
- 2 x stacking ports
- RJ45 Management port
- Fixed Internal Power Supply Configuration
- Optional Redundant Power Supply through External RPS
Models Available
| MS225-24-HW |
24 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, RJ45 Management port Non PoE Stackable Switch
|
| MS225-24P-HW |
24 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, RJ45 Management port 370 W PoE Stackable Switch
|
| MS225-48-HW |
48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, RJ45 Management port Non PoE Stackable Switch
|
| MS225-48LP-HW |
48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, RJ45 Management port 370 W PoE Stackable Switch
|
| MS225-48FP-HW |
48 x 10/100/1000BASE-T Ethernet RJ45, 4 x SFP+ 10GbE uplink, RJ45 Management port 740 W PoE Stackable Switch
|
