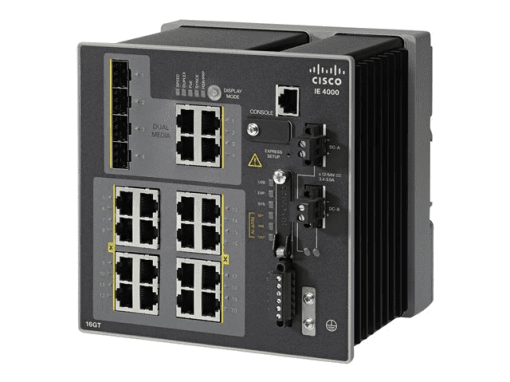

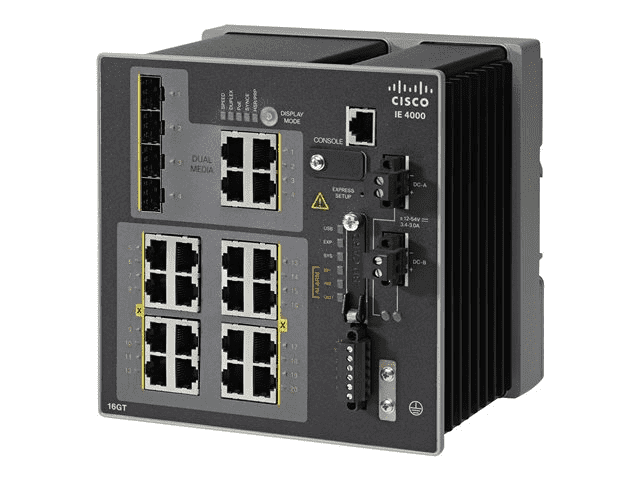

Name: CISCO (IE-4000-8GT8GP4G-E) IE 4000 8 X RJ45 10/100/1000 WITH 8 X 1G POE, 4 X 1G COMBO IE-4000-8GT8GP4G-E
SKU: IE-4000-8GT8GP4G-E
Availability: InStock

CISCO (IE-4000-8GT8GP4G-E) IE 4000 8 X RJ45 10/100/1000 WITH 8 X 1G POE, 4 X 1G COMBO

Part Number: IE-4000-8GT8GP4G-E

The Cisco Industrial Ethernet (IE) 4000 Series provides superior high-bandwidth switching and proven Cisco IOS Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

Brand

Cisco

Feature

Gigabit Ethernet, VLAN

Type

Switches

Switch type

Managed

Number of ethernet ports

20 Ethernet ports

General

Device Type

Switch – 20 ports – Managed

Enclosure Type

DIN rail mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 + 8 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP

Power Over Ethernet (PoE)

PoE+

Capacity

Virtual interfaces (VLANs): 1000 IGMP groups: 1000

MAC Address Table Size

16K entries

Routing Protocol

Static IPv4 routing

Remote Management Protocol

SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI

Authentication Method

RADIUS, TACACS+

Features

NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP time synchronisation, Class of Service (CoS), Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613

RAM

512 MB

Flash Memory

128 MB

Expansion / Connectivity

Interfaces

8 x 1000Base-T RJ-45 4 x 1000Base-T RJ-45 uplink 4 x SFP uplink 1 x mini-USB Type B 1 x console RJ-45 8 x 1000Base-T RJ-45 PoE+

Expansion Slots

1 (total) / 0 (free) x SD Memory Card

Power

Voltage Required

DC 9.6 – 60 V

Electric Current Required

4.3 A

Miscellaneous

Included Accessories

1 GB SD card

MTBF

519,190 hours

Compliant Standards

CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223

TAA Compliant

Yes

Software / System Requirements

Software Included

Cisco IOS LAN Base

Dimensions & Weight

Width

15.54 cm

Depth

12.92 cm

Height

15.54 cm
