AIRMUX-5000/SU-PRO/F58F/100M/INT | SU-PRO 100 ODU, WITH AN INTEGRATED ANTENNA, SUPPORTING MULTI FREQUENCY BANDS AT 5.X GHZ, FACTORY DEFAULT 5.8 GHZ FCC/IC. - Touchpoint Technology

Part no: AIRMUX-5000/SU-PRO/F58F/100M/INT

SU-PRO 100 ODU, WITH AN INTEGRATED ANTENNA, SUPPORTING MULTI FREQUENCY BANDS AT 5.X GHZ, FACTORY DEFAULT 5.8 GHZ FCC/IC.

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

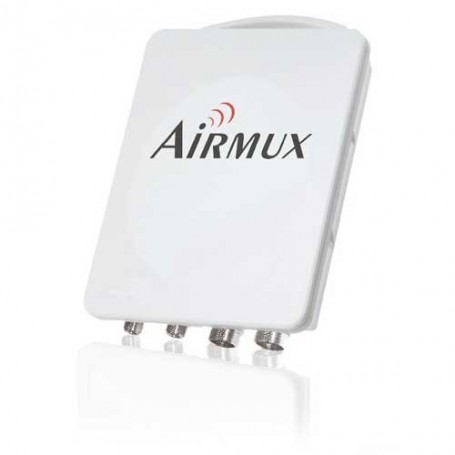

SU-PRO 100 ODU, WITH AN INTEGRATED ANTENNA, SUPPORTING MULTI FREQUENCY BANDS AT 5.X GHZ, FACTORY DEFAULT 5.8 GHZ FCC/IC.

Part Number: AIRMUX-5000/SU-PRO/F58F/100M/INT

Point-to-Multipoint Broadband Wireless Access

RAD’s Airmux-5000 point-to-multipoint broadband wireless radios are the ideal wireless
solution for business users demanding high capacity throughput with dedicated traffic
bandwidth allocation and service level agreement (SLA) per subscriber.

Optimal performance and high spectral efficiency in dense radio environments

Featuring up to 750 Mbps aggregated sector capacity and a range of up to 40 km (25 miles), a single Airmux-5000 base station supports up to 64 remote subscriber units (SUs) with multi-band operation, making it ideal for:

  • Service providers and ISPs, offering IP backhaul and 4G/broadband access for remote, rural and underserved communities
  • Private networks requiring high capacity inter-branch connectivity for university campuses, healthcare organizations, government institutions, large enterprises and public establishments
  • Security and surveillance applications requiring aggregation and backhaul of traffic from multiple colocated HD cameras
  • Multi-band operations over 2.4 GHz, 3.3 – 3.8 GHz and 4.9 – 6.4 GHz in a single device
  • Supports fixed and nomadic applications
  • Airmux-5000i with beamforming antenna
  • 5 MHz, 10 MHz, 20 MHz, or 40 MHz channel bandwidth
  • OFDM, MIMO and antenna diversity capabilities
  • Range up to 40 km (25 miles)
  • Intra- and inter-site TDD synchronization using hub-site synchronization (HSS) and GPS
  • Low constant latency – typically 4 to 10 msec in full sector load
Product Series Max. Aggregate Throughput Band (GHz)
5000i HBS Up to 750 Mbps 3.3–3.8, 3.65, 5.1–5.8
5000 HBS 25, 50, 100, 250 Mbps 2.4, 2.5–2.7, 3.3–3.8, 4.9–6.0
5000VS HBS 125** Mbps 5.1–5.8
5000 HSU 5*, 10*, 25*, 50* Mbps 2.4, 2.5–2.7, 3.3–3.8, 4.9–6.0

* Software upgradeable

** Up to 10 HSUs
