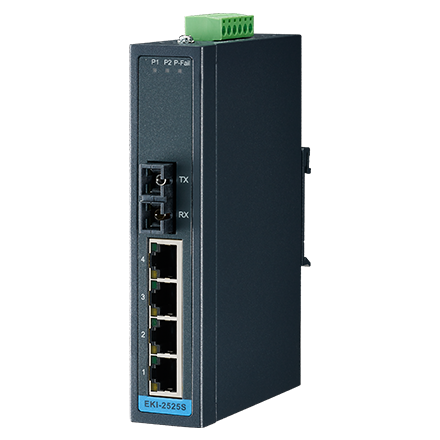

Advantech EKI-2525S 4FE+1FE SC Single-mode Unmanaged Ethernet Switch

Part Number: EKI-2525S-AE



EKI-2525M/2525S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2525S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2525S provides one multi-mode/single mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2525S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2525S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.



Key Features

  • Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
  • Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525M)
  • Provides 1 x 100 Mbps Single-mode SC type fiber optic port (EKI-2525S)
  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossove
  • Provides redundant 12 ~ 48 VDC power input
  • Provides flexible mounting: DIN-rail and Wall mount



Click here to download datasheet from Advantech.
