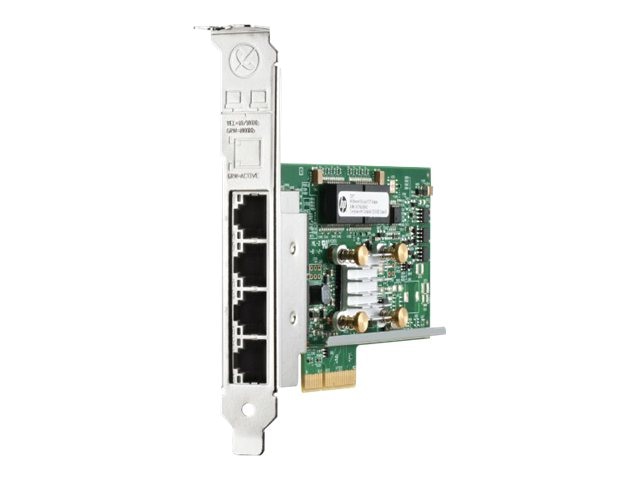

HP ETHERNET 1GB 4-PORT 331T ADAPTOR
Part Number: 647594-B21
Do you need a 1GbE adapter with low power, high port density and virtualization features? consolidation. The HPE Ethernet 1Gb 4-port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption. The Ethernet 1Gb 4-port 331T Adapter is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 8 Gb meets the needs of customers desiring high bandwidth. The HPE Ethernet 1Gb 4-port 331T Adapter supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Brand
HP
Type
Wired
Interface type
PCI Express
Compatibility
PC
Data transfer rate
1 Gbps
General
Device Type
Network adapter
Form Factor
Plug-in card – low profile
PCI Specification Revision
PCIe 2.0
Networking
Ports
Gigabit Ethernet x 4
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate
1 Gbps
Status Indicators
Port transmission speed, link/activity
Features
Jumbo Frames support, PXE support, Large Send Offload (LSO)
Processor / Memory
Processor
1 x Broadcom BCM5719
Expansion / Connectivity
Interfaces
4 x 1000Base-T – RJ-45
Miscellaneous
Included Accessories
Low-profile bracket, full-height bracket
Dimensions & Weight
Depth
13.2 cm
Height
6.9 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 – 90% (non-condensing)
