Note: this product has been replaced by the X600 and X600 Pro.

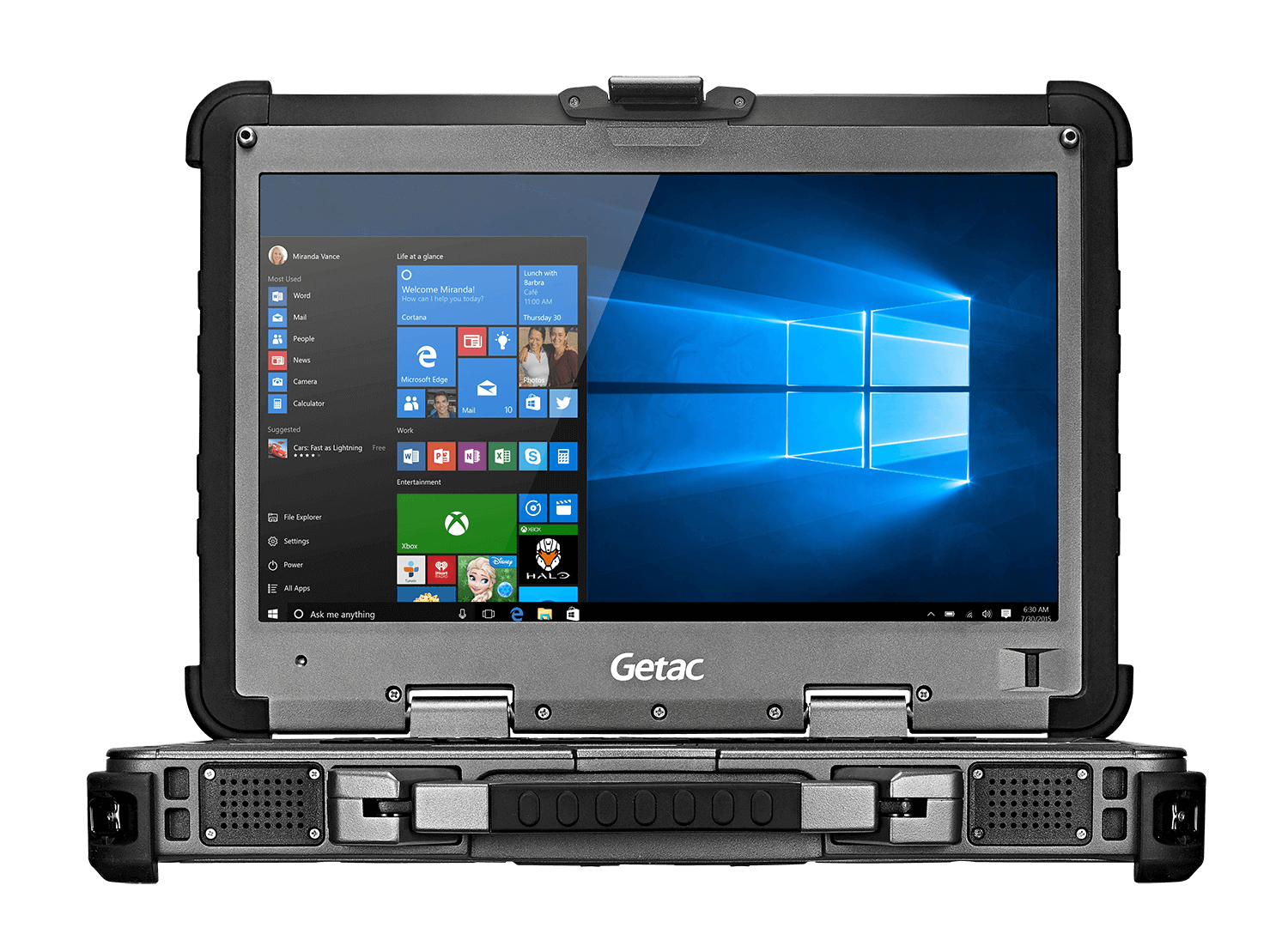

Getac X500 notebook (not compatible with X500 Server) 11-16V, 22-32V DC Vehicle Adapter
Part Number: 541312800002
Operating System
Windows 10 Pro
Mobile Computing Platform
Intel® Core™ i7-7820HQ vPro™ Processor 2.9GHz, Max 3.9GHz
– 8MB Intel® Smart Cache
Intel® Core™ i5-7740HQ vPro™ Processor 2.8GHz, Max 3.8GHz
– 6MB Intel® Smart Cache
VGA Controller
Intel® HD Graphics 630
Optional NVIDIA® GeForce® GTX1050 4GB discrete graphic controller
Display
15.6″ TFT LCD FHD (1920 x 1080)
1000 nits QuadraClear® sunlight readable display
Optional resistive touch screen
Storage & Memory
Optional 8GB / 16GB / 32GB / 64GB DDR4i
Optional SATA HDD 500GB / 1TB; SATA SSD 512GB / 1TB
Keyboard
LED backlit membrane keyboard with integrated numeric keypad
Optional LED backlit rubber keyboard
Pointing Device
Touchscreen
– Optional pressure sensitive touchscreen
Touchpad
– Glide touchpad with scroll bar
Expansion Slots
Optional PCMCIA Type II x 1
ExpressCard/54 x 1
Smart Card reader x 1
SD Card Reader x 1
Multimedia Bay
DVD super multi drive
Optional 2nd battery: 10.8V, 8700mAh
Optional 2nd storage: HDD 500GB / 1TB ; SSD 512GB / 1TB
I/O Interface
Serial port (9-pin; D-sub) x 2
External VGA (15-pin; D-sub) x 1
Microphone (Mini-jack) x 1
Audio output (Mini-jack) x 1
DC in Jack x 1
USB 3.0 x 4
LAN (RJ45) x 2
HDMI x 1
Docking connector x 1
Optional RF antenna pass-through for GPSii, WLAN and WWAN
Optional FHD webcam x 1
Communication Interface
10/100/1000 base-T Ethernet
Intel® Dual Band Wireless-AC 8265, 802.11ac
Bluetooth® (v4.2)iii
Optional dedicated GPS
Security Features
Intel® vPro™ Technology
TPM 2.0
Smart Card reader
Kensington lock
Power
AC adapter (150W, 100-240VAC, 50 / 60Hz)
Li-Ion smart battery (10.8V, tpyical 8700mAh; min. 8100mAh)
Optional Mutlimedia Bay 2nd Li-Ion smart battery (10.8V, typical 8700mAh; min. 8100mAh)
Dimension (W x D x H) & Weight
410 x 320 x 65mm (16.1″ x 12.6″ x 2.5″)
5.2 kg (11.4 lbs)iv
Rugged Features
MIL-STD-810G certified and IP65 certified
MIL-STD-461G certifiedv
Optional ANSI/ISA 12.12.01vi
Full magnesium alloy case
Shock-protected removable HDD
Vibration & drop resistant
Environmental Specifications
Temperaturevii:
– Operating: -20°C to 55°C / -4°F to 131°F
– Storage: -40°C to 71°C / -40°F to 160°F
Humidity:
– 95% RH , non-condensing
Software
Getac Utility
Getac Geolocation
Optional Absolute DDS® Persistence
Accessories
Backpack
Multi-Bay Charger (Dual Bay)
MIL-STD-461 certified AC adapter (150W, 100-240VAC)
Stylus
Protection film
PCI or PCI-Express 3.0 Expansion Unit (x 2 slots)viii
Main battery (10.8V, typical 8700mAh; min. 8100mAh)
AC adapter (150W, 100-240VAC)
Multimedia bay 2nd battery (10.8V, typical 8700mAh; min. 8100mAh)
Multimedia Bay 2nd HDD
Vehicle dockviii
Office dock
